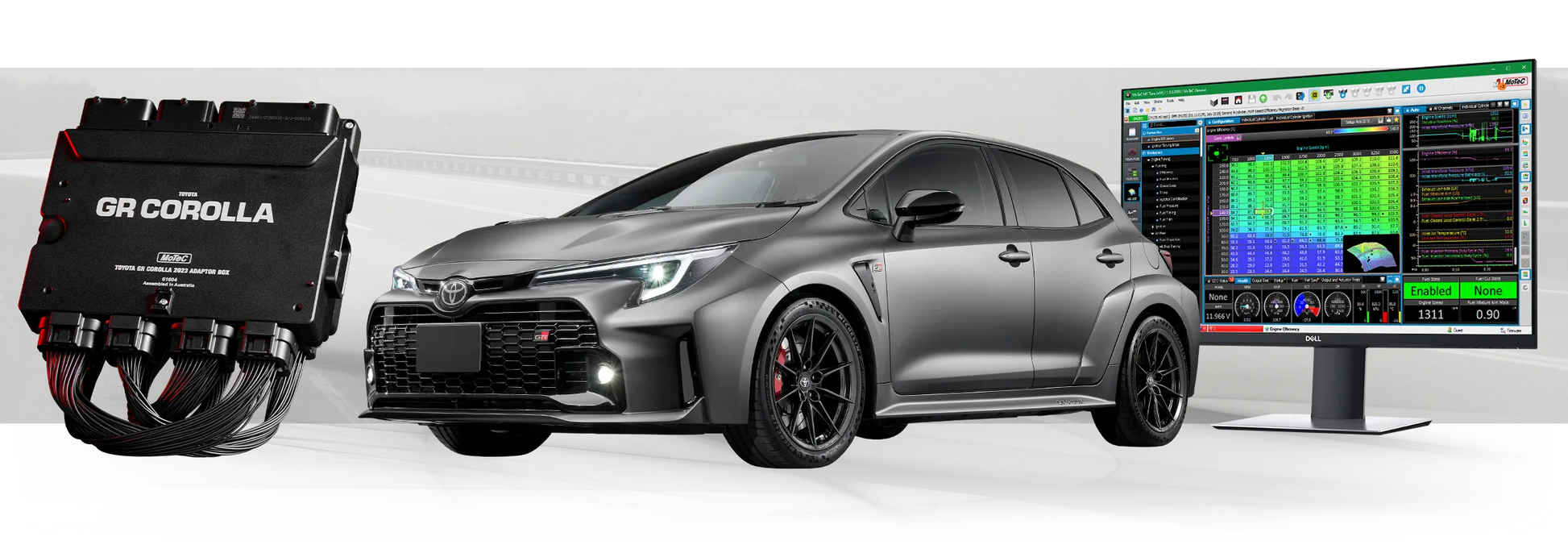

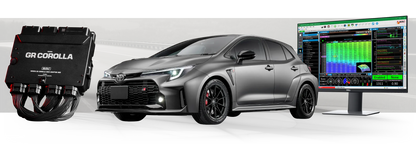

MoTeC M142 TOYOTA GR COROLLA 2023 G16E M1 KIT (Licence)

This M142 Plug-In ECU Kit provides a complete replacement for the OE (original equipment) ECU for the Toyota GR Corolla. Using existing wiring, the original fuel system and sensors, it delivers convenient installation with fully programmable control.

Using the optional Diff Loom (#61466L) the kit provides programmable rear Diff Control that integrates with the Differential Mode Switch.

Along with fuel, ignition, throttle and camshaft control, this Kit also supports other OE ECU features, including:

• Selectable Drive Mode including Normal, Sport, and Track using OE controls
• Head-Up Display
• Direct injector with high pressure fuel pump control and secondary port injector control (saturated high-ohm injectors only)
• Cruise control
• OE dash functionality including warnings

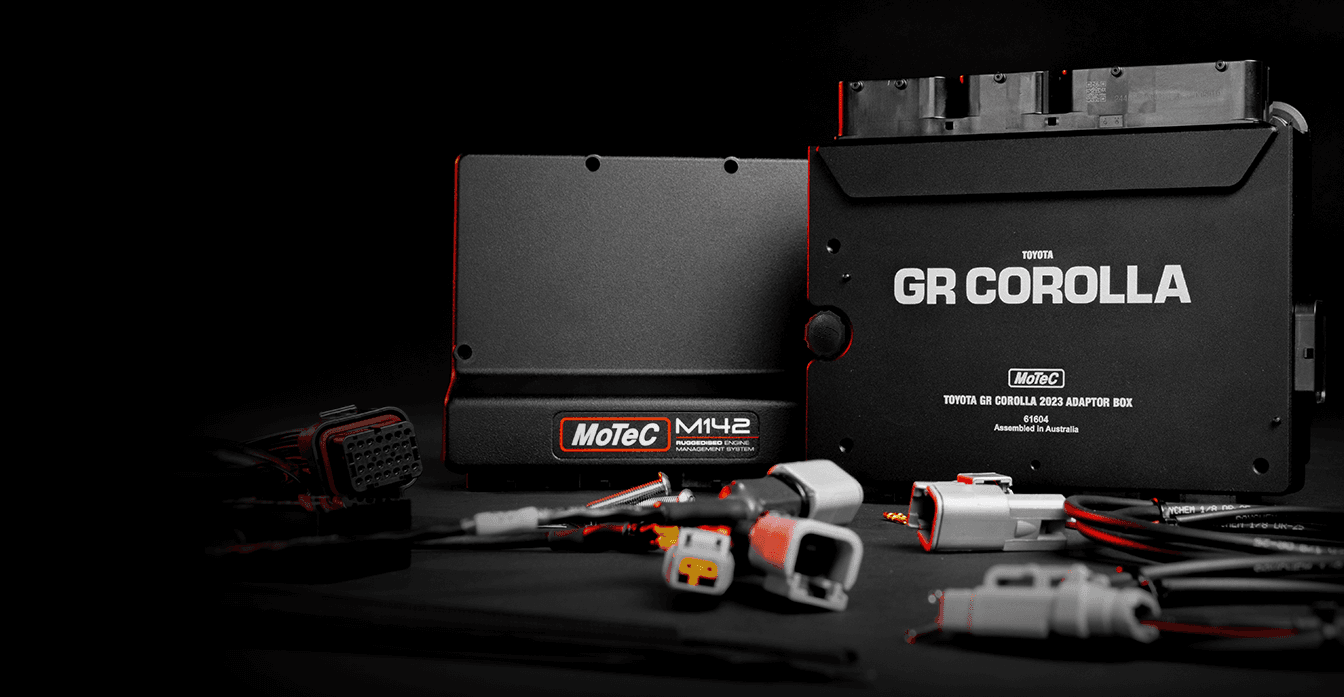

Kit includes:

• 13142M - M142 ECU MARINE
• 61486 - M142 TOYOTA COROLLA GR 2023 ADAPTOR KIT
  • 61604 - M142 TOYOTA COROLLA GR 2023 ADAPTOR BOX
  • 61253 - M1 ADAPTOR 200MM 26W KEY 1 STUB LOOM
  • 61251 - M1 ADAPTOR 120MM 26W KEY 3 STUB LOOM
  • 61252 - M1 ADAPTOR 120MM 34W KEY 1 STUB LOOM
  • 61250 - M1 ADAPTOR 200MM 34W KEY 2 STUB LOOM
  • 57006 - BOSCH LSU 4.9 WIDEBAND LAMBDA SENSOR
  • 61430 - M1 ADAPTOR LTC LOOM
  • 61300K - LTC - LSU LAMBDA TO CAN (500K)
  • 61496 - GR COROLLA CAN ISO GATEWAY
  • 61497 - LOOM - M1 ADAPTOR CAN ISO GATEWAY PWR
  • 61605 - LOOM- POWER EXTENSION
  • 61488 - M142 COROLLA GR 2023/5 MOUNTING KIT
    • 1 x DTM 2 Pin Male Connector
    • 1 x DTM 2 Pin Female Connector
    • 1 x M3 x 8mm S/S Button Socket Screw
    • 2 x M5 S/S Flat Washer
    • 2 x M5 x 25mm S/S Button Socket Screw
    • Velcro Dual Lock Tape
    • Cable Tie Mount
    • 8 x 4.8 x 200mm Cable Ties
