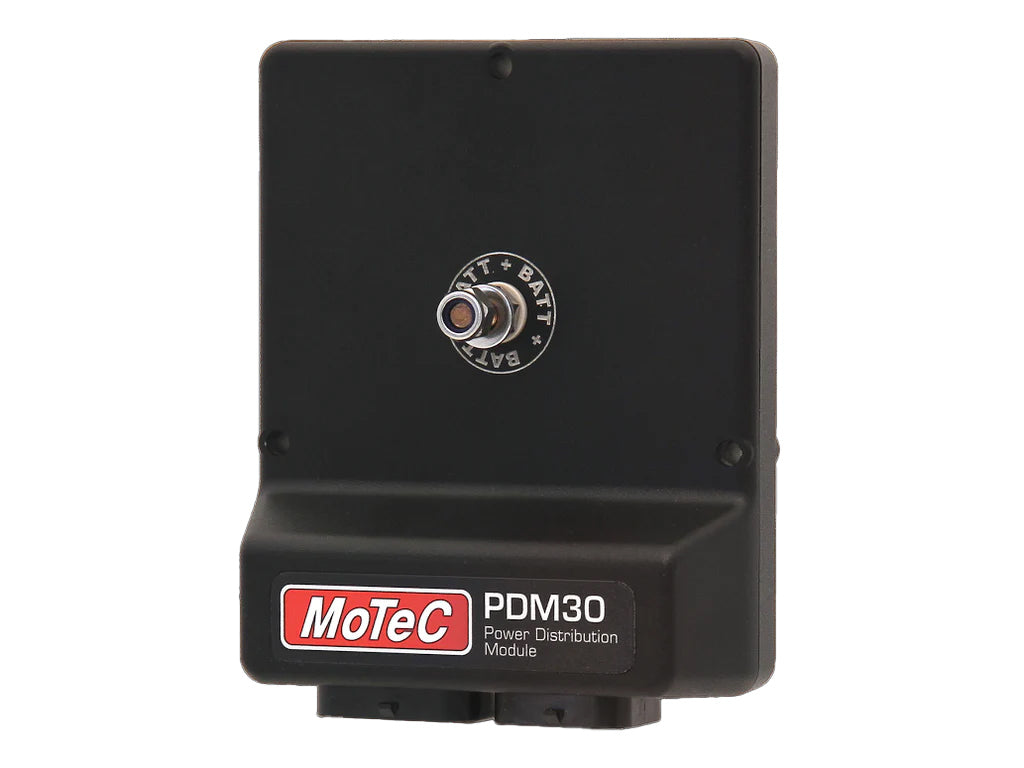

MoTeC PDM30 - POWER DISTRIBUTION MODULE

MoTeC's 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.

SKU: M-14103

PDM30 Data Sheet.

Outputs

• 8 x 20 A outputs - 20 A continuous, 115 A transient (typical)

• 22 x 8 A outputs - 8 A continuous, 60 A transient (typical)

Inputs

• 16 x Switch inputs

Communications

• 1 x CAN

Diagnostic Information

• Output current and voltages

• Input voltages

• Error status

Physical

• Connectors

• 1 x 34 pin waterproof connector

• 1 x 26 pin waterproof connector

• 1 x M6 stud

• Case size 108 x 128 x 39 mm

• Weight 270 grams
